Toyota Landcruiser Exhaust 79 Series V8 D/Cab 3" Turbo Back No Cat With Muffler Black Aluminised Steel
2007 - 2017
WAS $530.00
RRP $663.00
NOW $424.00
SAVE 36%!
Sale Ends in
23:59 pm, 2 December 2024
In Stock
More infoShare this product:
PRODUCT DETAILS:

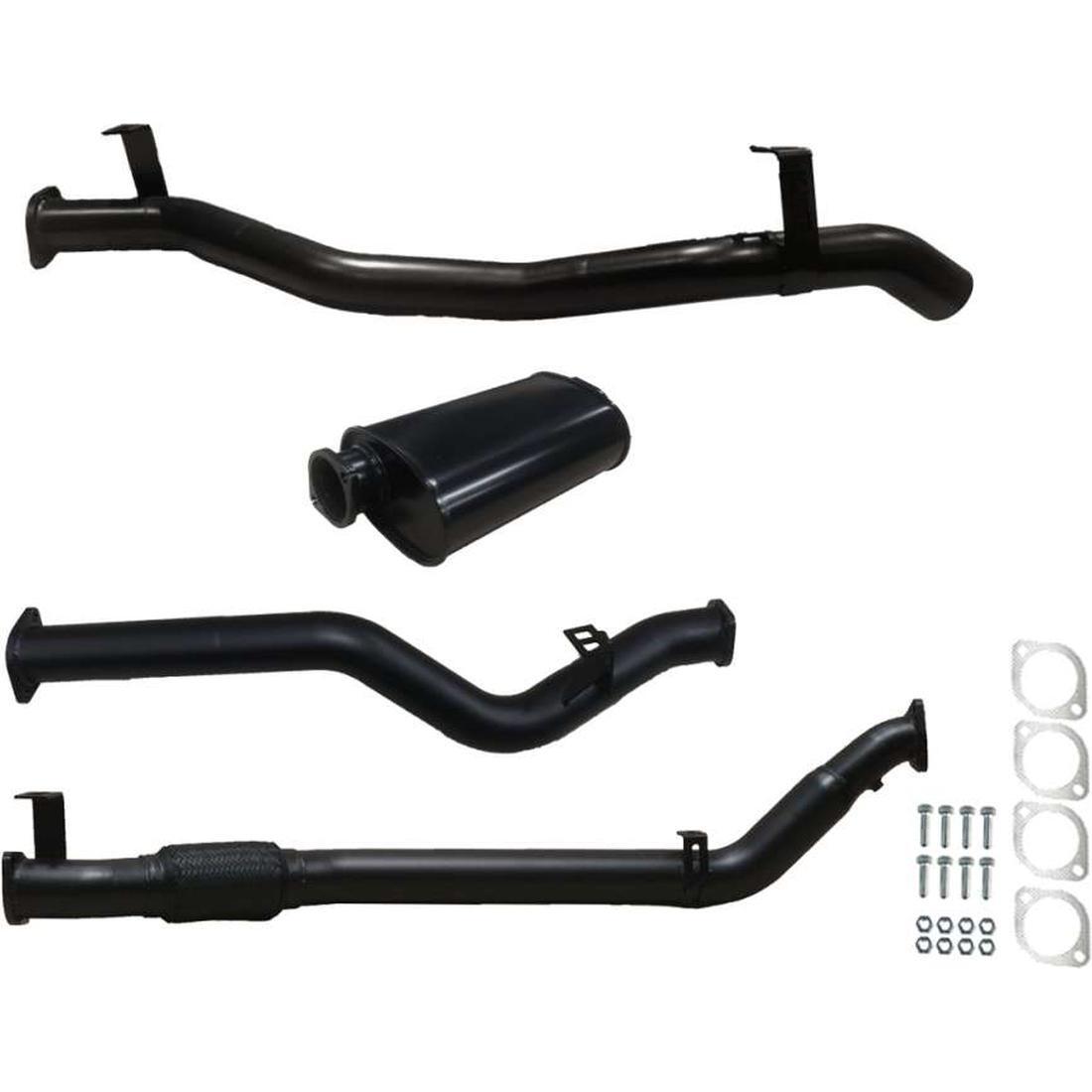

Playtime Ignite 3" (76mm) Turbo Back Sports Exhaust System - Black Coated
Fits:
TOYOTA LANDCRUISER 79 SERIES 4.5L 1VD-FTV SINGLE TURBO
DUAL CAB UTE ONLY
2007 TILL 2017
NON DPF MODEL ONLY
Features:
CNC 3" Mandrel Bent
Durable 3” Aluminised Steel Tube
10mm Thick Laser Cut Flange Plates.

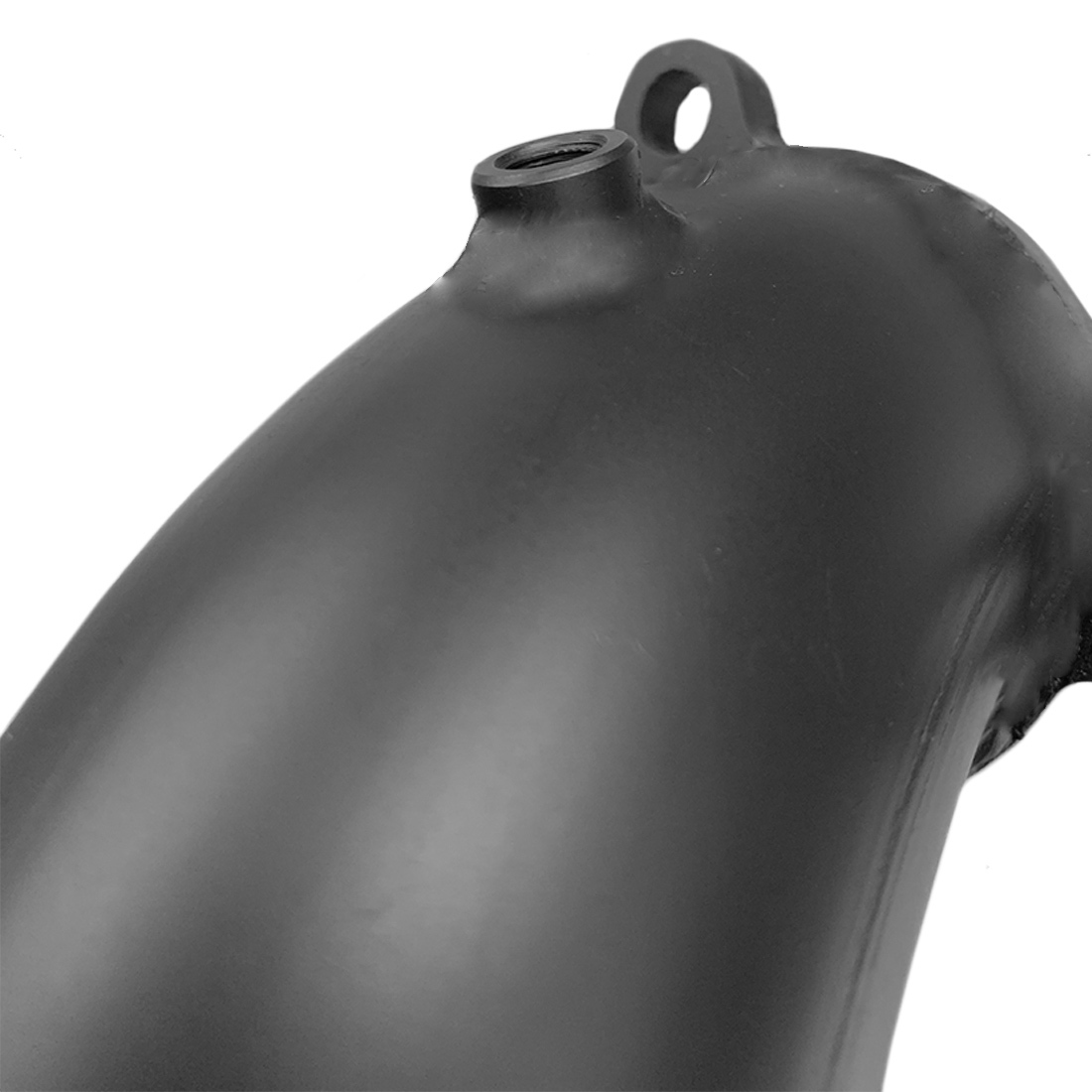

Exhaust Temp Provision (EGT)
Cat Eliminator Pipe

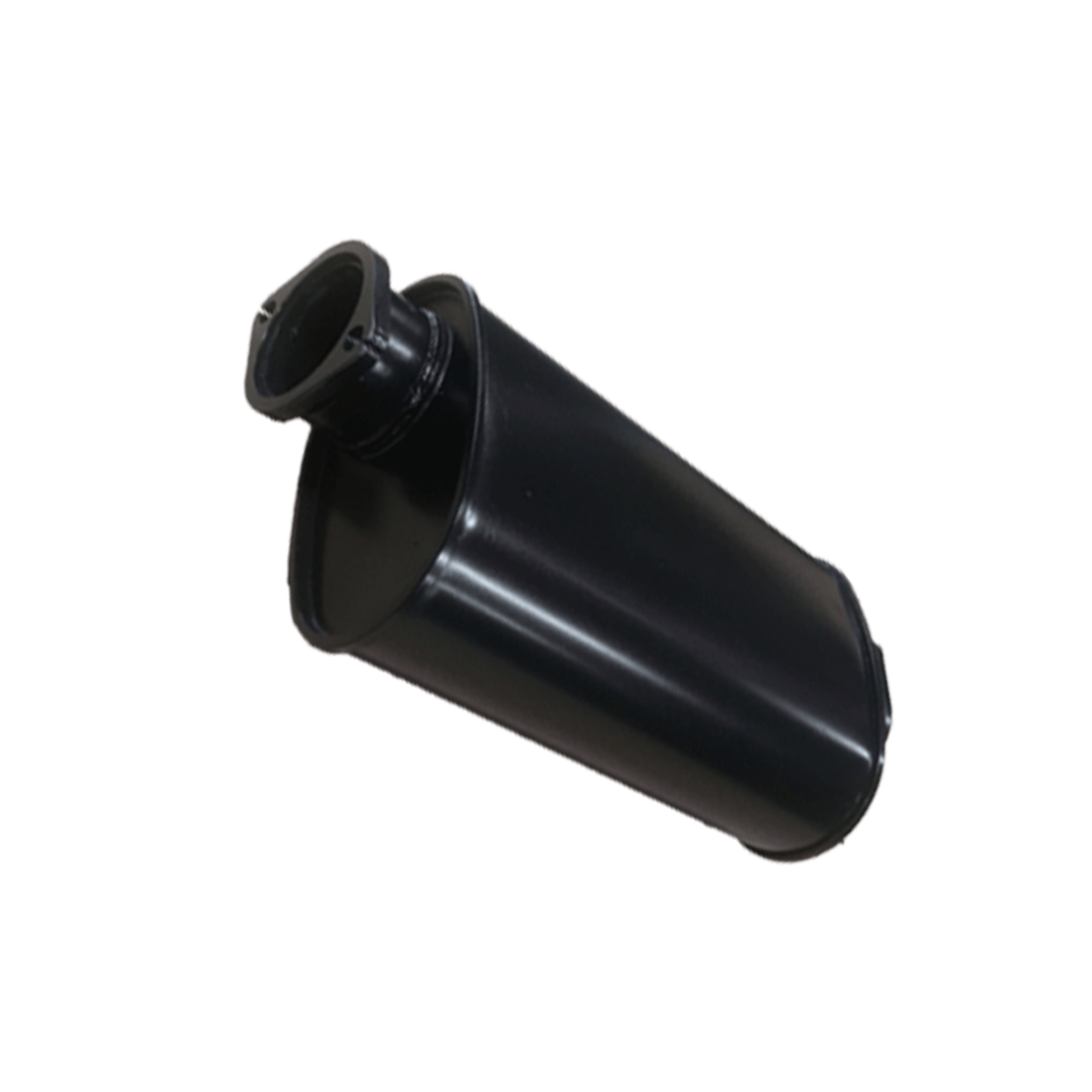

High Flow Sports Muffler
Fitting Kit included
2 Year Manufacturer Warranty
MADE IN AUSTRALIA
Benefits:
Increased Performance and Fuel Economy
Extreme durability
Will not require ECU remapping or dyno tune
Optional Direct Fit Muffler, Resonator, or Pipe
Available for over 50 makes and models
Ultimate towing advantage
Quick and easy install
Australian Made
2 year warranty
***Disclaimer: Check over exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle. If you have any fitting/alignment issues, please call us as soon as possible to avoid damaging the exhaust system.***
| SKU | T79D45BCDM |
| Brand | Ignite |
| Shipping Weight | 24.0000kg |
| Shipping Width | 0.390m |
| Shipping Height | 0.250m |
| Shipping Length | 1.300m |
| Shipping Cubic | 0.126750000m3 |
| Unit Of Measure | ea |
- Remove rear tail pipe and muffler assembly from the vehicle.
- Remove centre connecting pipe from the vehicle.
- Remove turbo dump catalytic converter from the vehicle. We advise to spray the 3 nuts with WD40 before removing. Hint: It is sometimes easier to locate the LHS turbo nut through the LHS wheel arch.
- Insert the supplied EGT plug into the turbo dump pipe.
- Fit the turbo dump pipe cat/cat delete section to the turbo outlet flange using the three supplied M10x1.25 nuts. Insert the standard gear box bracket bolt also. Tighten all 4 nuts/bolts. Also fit the rectangular mounting plate on top of the exhaust hanger mounts with the x2 10mm nuts finger tight on top.
- Fit the connecting pipe to the turbo dump pipe cat/cat delete section and tighten finger tight with the supplied 3/8 UNC nuts. Also fit the rectangular mounting plate on top of the exhaust hanger mounts with the x2 10mm nuts finger tight on top.
- Fit the pipe only/resonator or muffler section to the connecting pipe and tighten finger tight with the supplied 3/8 UNC nuts.
- Fit the tailpipe to the pipe only/resonator or muffler section and tighten finger tight with the supplied 3/8 UNC nuts. Also fit the rectangular mounting plates on top of the exhaust hanger mounts with the x2 10mm nuts finger tight on top.
- Check over exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle.
- Enjoy your IGNITE exhaust!
MANDREL BENT EXHAUST
IGNITE Exhausts consists of mandrel bent piping to determine optimum performance, flow and sound out of your exhaust system. Mandrel bending involves a mandrel placed in the tube during bending which maintains the shape and diameter of the tube. It reduces the risks of restricted exhaust gases often found in cheaper bending methods like press bending.
AUSTRALIAN DESIGNED AND MADE
With over 50 years combined experience the Playtime team have spent countless hours on the design and testing of our 3 inch mandrel bent 4x4 exhaust systems. Proudly Australian made here in Sunbury, Victoria, we strive to offer an affordable product direct to the public.
WHICH OPTION DO I NEED?
IGNITE Exhausts pride themselves in offering an extensive number of exhaust options to suit every buyer.
High flow catalytic converter – Required for legal road use, designed to have less restriction compared to stock catalytic converters, high flow design has very little restriction on the exhaust.
No catalytic converter – For off-road use only, no restriction in the exhaust (complete straight through exhaust).
Pipe only – No mufflers (straight pipe) our loud option.
Resonator – Moderate sound option, the design of our stainless steel resonator helps reduce drone whilst still providing an aggressive exhaust note.
Muffler – Our quietest option, perfect for towing. The straight through design of our stainless steel mufflers insure no restriction to the exhaust whilst keeping the note minimal.
Diff pipe – No mufflers (straight pipe) our loudest option finishing before the vehicles differential.
ALUMINISED MILD STEEL
Aluminised mild steel commonly used in exhaust systems for its strength and heat resistance is a great option for when choosing your exhaust. It can withstand exposure to corrosive elements without rusting easily thanks to its aluminium coating.
It’s a cost effective option compared to other similar materials making it a popular choice in various industries. If you’re looking for a heat resistant, durable, cost effective exhaust an aluminised mild steel exhaust is your option.
409 GRADE STAINLESS STEEL
The premium when it comes to an exhaust system is a 409 grade stainless steel exhaust. Unlike other materials such as 304 stainless steel that is very susceptible to cracking, 409 grade is a very heat resistant and more versatile metal making it a great choice when looking for exhaust performance.
Other materials like 304 stainless steel stress under the constant heat transfer in an exhaust which most commonly results in the exhaust cracking. 304 stainless steel is a great option for show cars where you are after that great polished look but on everyday road use the failure rate is high.
For a durable, corrosion and heat resistant exhaust it’s no mystery why a 409 stainless steel is used on most factory produced vehicles making it the best option when it comes to a 4x4 exhaust.
LASER CUT FLANGES & HANGERS
IGNITE Exhausts have spared no time when it comes to the custom flanges & hangers used on their exhaust systems giving it the upper edge when it comes to the strength of the exhaust.
Our competitors most often use the typical steel-rod hanger bracket creating a vast weak spot over the bracket, which in some instances can cause a crack or failure in the exhaust.
The precise cut of our hangers ensure that the bracket fits perfectly and securely. This accuracy helps maintain the structural integrity of the exhaust system.
BOLT ON INSTALLATION
IGNITE Exhausts are designed and tested to follow the same layout as the factory exhaust. A priority of ours is to ensure the ease of bolting on our exhaust systems which utilise the factory rubber mounts.
Detailed fitting instructions available at the click of a button as well as a full fitting kit supplied makes the job a breeze. Nuts, bolts, clamps, gaskets etc all supplied in fitting kit.
Note: When fitting allow time to check over the exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle. If you have any fitting/alignment issues, please call us as soon as possible to avoid damaging the exhaust system.
WARRANTY
Our 409 stainless steel and aluminised steel IGNITE Exhausts are backed by a 5 year warranty and 2 year warranty respectively. Should the item you receive be faulty in any way, please contact us and we’ll make sure the correct process is followed so the issue can be addressed as quickly as possible for you.
***Disclaimer: Please consider aftermarket accessories such as long-range fuel tanks, upgraded suspension and larger spare tyres before ordering your exhaust. To confirm your vehicle is compatible contact us via message/email or on 1300 12 13 12.***
